Blizzard RS Pulse Jet Baghouse

With Round Bags and Shutter Dampers for Gas Inlet

High cleaning efficiency of up to 99,99% for dust at least 200 nm in size.
Efficiency depends on the quantity of dust, the temperature, and the humidity.

Dust Collector Description

VIEW PDF CATALOG BLIZZARD BAG FILTER RS

The Blizzard Bag Filter RS is a reliable, low-maintenance, classic gas cleaning baghouse dust collector. It works with practically any type of dust, filtering both dry coarse and finely dispersed dust. It is a compact baghouse with round bags and features gas entrance passing through shutter dampers.

High dust load of up to 120 ppm

Round type bags are installed in the filter suitable for operating under conditions of high contamination.

High operation air temperature of up to +536 ˚F

In the standard set, the filter works with air flows of up to +300 ˚F. By order, a filter can be manufactured with an operation temperature of up to +536 ˚F.

Round Bags and Shutter Dampers: Efficient Cleaning and Reliable Protection

Reduce the wear on bags and save yourself the money and time spent replacing them

Shutter dampers are installed in front of the filters so the dust settles right inside the hopper, thereby reducing the wear on the bags.

Clean the air of any size of dust

Having a shutter damper in a filtration installation allows enterprises to work with dust containing medium-sized and large particles, as they fall right into the hopper after colliding with the shutter.

Modular Design: Our Main Field of Expertise

Increase performance by adding an additional filtration module.

Bolt mounted SKD assembly is performed based on instructions, such as in furniture assembly. Without any welding or complex modulations.

Due to the modular design, delivering the filter requires no special transportation and takes less time.

Rapid performance modernization

Quick and easy installation

Quick, straightforward transportation

Improved Design Customized for the Client's Objectives

Powerful, efficient fans

Selection of the best performing fan from the perspective of performance, pressure, and power consumption.

Under pressure or discharge

The filter works both under pressure and under negative air pressure from the fan.

Straightforward servicing

The filter design is made in such a way as to keep the service time to a minimum. Service hatches and doors can be installed as well.

Compact

Suitable for low performance and doesn't take up much space.

Properly designed and tested at various industrial sites

The proper air passage speed via the filtered bags provides the basis for excellent air filtration and self-cleaning. That renders the filter economical and reliable.

Optional nontypical performance

Based on the client's desire, the design, size, and performance can be modified. There is a large range of additional options to choose from.

What Sets Blizzard Bag Filter RS Apart From Other Models

-1-

Gas entry occurs through shutter dampers.

-2-

The filters are packaged with round bags

-3-

Compact design and size

Areas of Use

The filter is suitable for the majority of industrial fields and production sites.

Food industry
Chemical industry
Metallurgical industry
Wood-processing industry
Oil and gas industry
Mineral extraction
Flour mills
Cement plants
Asphalt and concrete plants
Plastic and glass item production factories
PWM and plaster production
Production sites equipped with various types of ovens

QUICK SELECTION BY SECTOR

How It Works

The contaminated air enters into the Blizzard Bag Filter RS via the air duct (or gas pipe) into the dirt chamber. Large-sized dust particles are reflected off the shutter dampers. After that, the dust particles settle on the bags as the cleaned air passes through the bags and enters into the clean chamber. The purified gas exits from the filter outside or back into the facility with the help of the fan.

The filter model is suitable for most industrial sectors, including cement dust, coal processing plants, wood processing, metalworking, and others.

Specification

The performance specification depends on the package elements. We create each project customized for the client bases on a detailed questionnaire on their industrial site and the nature of the dust.

A baghouse can be implemented in nontypical form depending on the client’s technical task.

Performance;2 300 — 35 300 cfm (3900 — 60000 m³/h) or based on the client’s technical task Version;Standard, generally accepted version Anti-static or explosion-proof version available. Filtration area;650 ft² (60 m²) and up, or based on the client's technical specification Filtration bag material;Polyester, meta-aramid, PPS, anti-static filters, and other material depending on the nature of the dust Type of filtered element;Round bag on a metal cage Quantity of filtered elements;160 Filtration speed;3-6.5 ft/min (1-2 m/min) for gas cleaning 6.5-20 ft/min (2-6 m/min) for very coarse dust particles Dust flow temperature;Typically up to +300 ˚F (+150 ˚C) Wares of up to 660 ˚F (350 ˚C) available for development Dust concentration at the filter entrance, no more than;Typically up to 120 ppm (g/m³) Ware development of up to 150 ppm (g/m³) vailable Dust concentration at the exit filter, no more than;Standard: 0.005-0.01 ppm (5-10 mg/m³) Ware development of 0.001-0.005 ppm (1-5 mg/m³) available Compressed air pressure;58-116 psi (4-8 bars) Compressed air consumption;Starting at 2 cfm (56 l/m) depending on the filter’s performance and the dust content in the gas Aerodynamic resistance; 0.73 psi (2000 Pa) Peak negative pressure;Standard:20 iwg (5000 Pa) Ware version with a high negative pressure available Filter power consumption without additional equipment;0.2 kW Filter installation location;The filter is typically installed in a facility of between 14 ˚F (-10 ˚C) indoors and -22 ˚F (-30 ˚C) outdoors. A ware can optionally be produced by order to be installed which allows -58 ˚F (-50 ˚C) minimum. Dust discharge system;The basic default package contains a manual “dust slide gate valve”. The additional package elements contain a choice of: a mechanical “double flap” or an automatic “flood hatch”. Frame version;Coated steel The ware design is modular, and can be completely installed and dismantled, which facilitates the processes of assembly, transportation, repair, and additional modernization. Dimensions Attachment dimensions Distance from the hopper discharge device to the floor;Indicated in the charts below. Filter mass in assembly;Starting at 1750 lbs (794 kg), depending on the filter model

CASE STUDY: Optimized Baghouse for Mineral Wool Dust

A U.S. manufacturer needed an efficient dust collection & reclamation system for their sandwich panel production.
Our Blizzard Baghouse delivered:
✔ 30,000 CFM airflow
✔ 5,500 sqft filtration
✔ Pulse jet cleaning
✔ Polyester filters
✔ 270°F operation
Since 2017, the system has run flawlessly with minimal maintenance. Read

Package

Basic package for each module

There can be more modules depending on the client’s technical task

Coated steel frame

1

Compressed air receivers

2

Diaphragm valves for filter bag cleaning

28

Vertically arranged round filter bags on a wire metal cage

112

Conical hopper for unloading dust

1

Maintenance door at the top of the filter for installing and uninstalling filter elements

4

Rotation valve for controlling the dust level in the hopper

1

Shutter dampers at the contaminated air’s entrance, for preliminary dust separation

Set

Filter control cover

1

Filter data sheet, operation instructions, and installation instructions

Set

Easily removable filter inspection hatch

1

Sectional manually operated louver

1

Coating of the entire filter on both sides

RAL 5003

Filter bag
replacement

Filter element
removal from the top

Contaminated gas entry (typically from the side)

1

Contaminated gas exit (typically from the side)

1

Grounding the filter

Set

Additional package

We always compromise with the client and are willing to add the necessary functions range as well as other characteristics and parameters to the standard package.

FIRE EXTINGUISHING AND SAFETY

The explosion-safe version, the establishment of explosion-resistant membranes (excess pressure membranes), using filter elements with anti-static fibers and threads, additional grounding systems, IP 64 electricity, etc.
Fire extinguishing system
Explosion-proof membrane on the body of the filter.
Pneumatic dust or vibro hopper discharge
Chemical-resistant coating

SERVICING

Filter element removal from the top
Floors and stairs for filter servicing

HEATING AND THERMAL INSULATION

Hopper thermal insulation (conical dust collector)
Filter body thermal insulation
Thermal insulation and heating of the regeneration system
Hopper heating (conical dust collector)
Heating of the filter and separate parts of it, bringing the heating to the valves

MANAGEMENT AND CONTROL

Smooth launch device (frequency transformer) for the fan, worm, and flood hatch.
Special control board built based on a relay with a control module, connection, and management. The control board, based on your order, will provide: data collection from the dust transmitters, the differential pressure, and the equipment condition (fan, worm, and feed).
Notification of the condition of the operation, accidents, and technological halts.
Emergency halts
Switching off the installation when the fire alarm is triggered.
The differential manometer of the differential between the “clean” and “dirty” areas.

DESIGN AND FILTER

Replacement of impulsive draft filters with a filter containing bags drafting in reverse to be used in locations where there is no ability to operate a compressor.
Filter cartridges in the event of certain small types of dust, high temperature (over 400 ˚F), stickiness, wetness, and others.
The filter body can be composed of various types of steel.
Oil-water separator
Fans of various types: high-pressure, medium-pressure, dust, corrosion, among others.
Various types of values: reverse, flame trap, and bypass valves.
Various colors of RAL paint.

DUST COLLECTION HOPPER

Worm conveyor
A box for unloading dust under the hopper.
Flood hatch for unloading the hopper.

Modifications, Size, and Charts

Modification: a filter option with a different number of modules. Adding modules brings about a change to general performance, the volume of the air filtered, size, and other specifications.
The Blizzard bag filter RS filter consists of one or multiple modules.

The recommended performance for one module is no more than 18,000 cfm. Augmenting performance requires installing an additional module (example is provided in the chart below).

A filter can optionally be produced with nontypical size depending on the client's technical task.

Size of a Single Module

Baghouse Design and Diagram

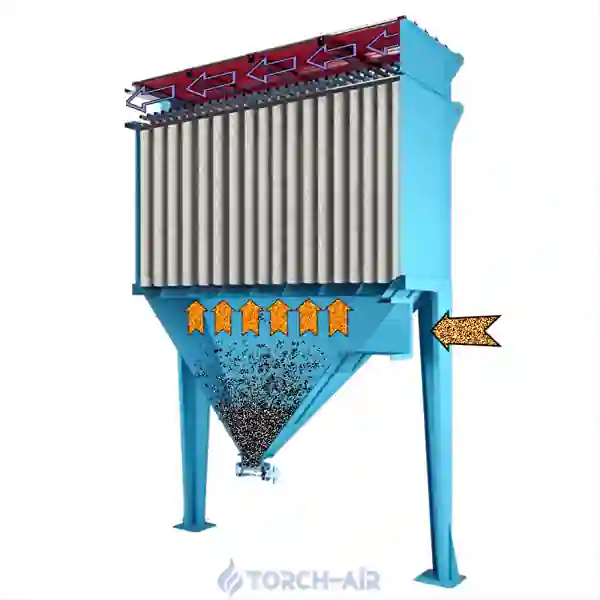

Movement scheme of gas inside and outside the filter

Air enters by way of the space under the bag via the gas entry flange and hits the shutter dampers, after which the air continues into the dirty chamber where the filter bags are. Such a design helps the client save on the filter diameters.
Highly charged and heavy particles are reflected off the shutter dampers located above the gas and air entry point and they fall into the hopper.
Air containing fine dust particles passes through to the bags into the dirty air chamber and then into the clean air chamber via the bags while the dust falls to the perimeter.
After that, the air passes up into the clean air chamber and exits the filter.
Located above are hatches for changing out the filter bags, which are necessary to replace, diagnose, and repair them.
An additional diagnostic hatch is located at the end of the filter.

Round Filter Bags

The Blizzard Bag Filter RS is equipped with round bags. Filters of this type are a little bigger in dimension and heavier than those with flat bags. This is due to the fact that when round bags are used, a larger internal space has to be created for the bags to be arranged in and gas dynamic laws have to be observed as well.

Round filter bags withstand a large-sized dust load of up to 120 ppm, in some cases even up to 150 ppm.

Round filter elements come in many different forms, types, and diameters. Up to 4-5 meters in length, no Venturi tube is required, and, instead, flow nozzles are used. At a length of over 5 meters, we can recommend using a variety of nozzles for more efficient filter element cleaning.

The material for filter bags is chosen on a case-by-case basis, in accordance with the technical task.

Contaminated Air Entry: Shutter Dampers

In the Blizzard Bag Filter RS filter, entry of contaminated air takes place through the space underneath the bag with shutter dampers.

The main advantage of a shutter damper is that when the air enters the filter, it “collides” with the shutter and disperses evenly along the filter elements, reducing the level of wear, as well as providing an even level of wear over the filter elements.

Installing shutter dampers provides a basis to save space in the dust extracting installation. Having a shutter damper in the baghouse provides a way to operate dust containing medium-sized and large particles which end up in the hopper right away after colliding with the shutter grid.

This is the cheapest version option in the Blizzard Bag Filter RS compared to the other ways of arranging contaminated air entry via damper plates or a side entrance.

The Dust Hopper and Unloading It

In the standard package, the Blizzard Bag Filter RS has a conical accumulation reservoir for dust and a round sealer with a hand lever for opening and closing or a box on wheels.

Additional hopper package

A vibrator or a vibrator installation to prevent dust from sticking to the hoppers walls.
Level transmitter
Hoppers and supports based on your enterprise’s order. For instance, we included a hopper that unloads into big bags for our wood-processing enterprise client.
The hopper with a worm under the bag for uninterrupted unloading of dust from the hopper with a flood hatch. In this case, the filter won't have to be stopped in order to unload the accumulated dust.

A classic conical hopper

An extended worm hopper.

Worm hopper, sectional type

Unloading the Captured Product

Methods for the client to choose from for organizing unloading

The basic package involves the use of a manual method. A manual flow gate is used, and after it is manually opened, dust unloads out of a dust reservoir into a container or, other times, the container (box) the dust falls into can be connected to the filter without a flow gate.
The automated method: a flood gate or a double flap is used for unloading, often together with a worm transporter.

The main difference arises when it comes to manual labor needing to be exerted to unload the captured product. The automated method can be tied into a production chain and, for instance, the product can be returned back onto a conveyor belt.

A hand dust latch

Automatic “flood gate” (feed)

Mechanical “double flap”

Managing the Baghouse

Smart control automation guarantees uninterrupted operation

Control of the filter is performed using a controller or a remote-control device. This system operates in a closed cycle, but it can be reconfigured depending on the client's needs.

We propose packaging the filter along with a system entailing completely automatic control, analysis, and fire extinguishing. A time controller is installed in the standard package and a Siemens controller can also be part of the package, depending on your needs.

Pneumatic Cleaning System

Periodically filtered bags get covered with dirt, which increases the filter’s resistance. In order for the system to work in an uninterrupted fashion without any pressure differentials, the bags need to be cleaned. Cleaning is done in the following way:

On top, there are air pipes in the clean air chamber which start from the air system's diaphragm valves. These valves are installed for the receivers where the compressed air is kept, which is used for pulse jet.
The air is submitted from the compressor to these receivers. Periodically, the valve begins operation and the air is submitted to the air pipe via the valve and then out of the air pipe with the help of the nozzles and is distributed inside the filter bag.
The filtered bag is shaken and aired out while the dust falls down into the hopper accumulator from the filter bag.
The dust can be extracted from the hopper accumulator in three different ways, depending on the technical task envisaged: the manual dust latch, a mechanical “double flap”, and an automatic “flood hatch”. The standard version has a manual dust latch included.

Pulse Jet Cleaning System Package:

Compressed air receiver package
It is the receiver that accumulates air for the pulse jet. If there isn't enough air, the degree of cleaning will fall, the wear on the filters will increase, and the filter’s performance will fall, since the aerodynamic pressure of the filter will increase. The receiver has a flanged socket for connecting to the compressor or the general factory compressed air pathway, as well as a moisture drain valve. If “Blizzard” isn't installed in a heated facility, we recommend installing an oil and water separation, thermal, and air heating system.

Air pipe system
These are either metallic or plastic. Everything depends on the gas and temperature that the Blizzard bag filter RS filter is cleaning. Nozzles are installed on the air pipes for more efficient cleaning of the filter element.

Air valves
All our valves are certified. Our valves are specialized for filter equipment air cleaning systems.

Controller
Controlling the regeneration system is implemented with the help of a special controller that configures the impulse quantity and the frequency of them.

Differential manometer (by order)
Then bag cleaning can not only originate based on time but also in terms of the degree of the bags’ “contamination”. When the bags fall, the pressure in the filter changes and the manometer submits a signal to implement the draft. The differential manometer will also show an accident if one or more of the bags is ruined.
